Anatomy of a WurliTzer Theatre Pipe Organ

RELAY

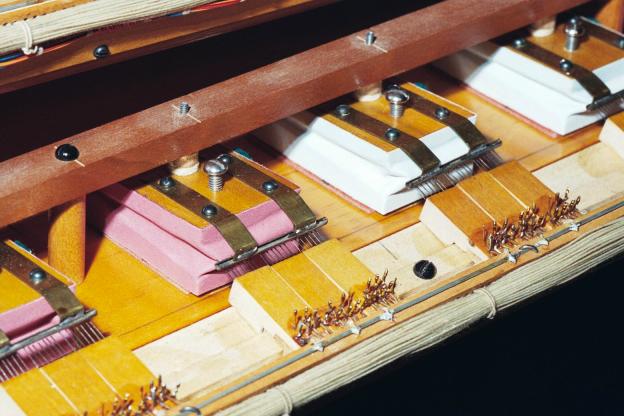

The relay operates by causing the chopper bar, attached to the pneumatic, to come down across each of the wires on the contact blocks, creating a short between all the contacts. The pneumatic is forced closed by the air pressure in the chest when the valves operate to open the channel from the pneumatics to the outside air.

On each contact block one contact is wired to the common power supply that runs behind the contact blocks on top of the wiring spreader strip. When the relay is activated power goes through these contacts to the shorting bar and over to each of the other contacts.

The other contacts on the blocks are wired to the stop tab rocker switches on the switch stack. There is one wire from each note relay going to each stop switch. There are enough contacts on each note relay for the number of stop tabs on the console for the relevant keyboard.

The large screws in the top of each pneumatic are to adjust the limit of the downward movement of the pneumatic and the chopper bar. It needs to be set to ensure that there is enough movement so that all contacts are touched by the bar, plus a little more to provide a wipeing action on the contacts to keep them clean each time they operate. Too much movement and there will be extra wear on the contacts, the wires will be flexing excessively causing fatigue and breaking, and it will ake longer for the contacts to open when the note is released making things slow.

The buffer pads above the pneumatics are attached to the threaded rod through the rail above. These set the limit of the upward movement of the pneumatics. They need to allow the pneumatic to open enough to lift the chopper bar clear of the contacts. Too much movement increases the time between when the note is played and when the chopper bar touches the contacts which also makes things slow.

Properly adjusted there should be as small amount of movement as possible so that the speed of the relay is at its maximum. The maximum speed is remarkably fast.
