Anatomy of a WurliTzer Theatre Pipe Organ

RELAY

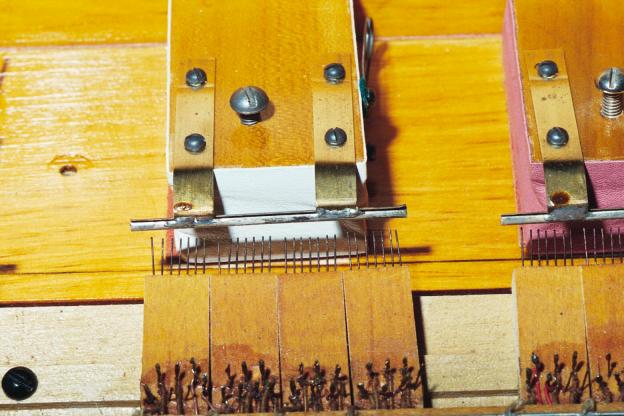

The relay pneumatic, chopper bar and contact block in detail.

There is excessive space between the chopper bar and the contacts because the bar with the up-stop buffers has not been installed yet so the pneumatics are able to open to their maximum.
