WurliTzer - Style 35

3 Manuals - 15 Ranks - 6 Tuned Percussions - 15 Traps - Curved Console

Tuba Horn16'85 pipes
Open Diapason16'85 pipes
Clarinet8'61 pipes
Saxaphone8'61 pipes
Solo String8'61 pipes
Viol d'Orchestre8'85 pipes
Viol Celeste8'73 pipes
Flute16'97 pipes
Vox Humana8'61 pipes
Tibia Clausa8'49 pipes
Trumpet8'49 pipes
Orchestral Oboe8'49 pipes
Kinura8'49 pipes
Oboe Horn8'49 pipes
Quintadena8'49 pipes
Cathedral Chimes25 notes
Sleigh Bells25 notes
Xylophone37 notes
Glockenspiel37 notes
Piano85 notes
Marimba49 notes
Chrysoglott49 notes

PEDAL
16' Ophicleide
16' Diaphone
16' Bass
8' Tuba
8' Octave
8' Clarinet
8' Saxaphone
8' Cello
8' Flute
4' Flute
Bass Drum
Kettle Drum
Snare Drum
Crash Cymbal
Cymbal
Piano
Pedal Second Touch
Great to Pedal
Solo to Pedal
Solo Octave to Pedal

3 Combination Toe Pistons

ACCOMPANIMENT
16' Contra Viol (TC)
8' Tuba Horn
8' Open Diapason
8' Clarinet
8' Saxaphone
8' Solo String
8' Viol d'Orchestre
8' Viol Celeste
8' Flute
8' Vox Humana
4' Viol d'Orchestre
4' Octave Celeste
4' Flute
2 2/3 Twelfth
2' Piccolo
Marimba
Harp
Chrysoglott
Tambourine
Castanets
Snare Drum
Chinese Block
16' Piano
8' Piano
4' Piano

Accomp Second Touch
Chimes
Sleigh Bells
Xylophone
Triangle
Solo to Accompaniment
Solo Octave to Accompaniment
Solo to Accompaniment - Pizzicato Touch
Solo Octave to Accompaniment - Pizzicato Touch

10 Adjustable Combination Pistons

One Tablet to cause the Pedal Stops and Couplers to move so as at all times to furnish a Suitable Bass automatically.

GREAT
16' Ophicleide
16' Diapason
16' Bass
16' Clarinet (TC)
16' Contra Viol (TC)
8' Tuba Horn
8' Open Diapason
8' Clarinet
8' Saxaphone
8' Solo String
8' Viol d'Orchestre
8' Viol Celeste
8' Flute
8' Vox Humana
4' Clarion
4' Viol d'Orchestre
4' Octave Celeste
4' Flute
2 2/3 Twelfth
2' Piccolo
2' Fifteenth
1 3/5 Tierce
Marimba
Harp
Chrysoglott
Bells
Xylophone
Glockenspiel
16' Piano
8' Piano
4' Piano

Great Second Touch
Solo Sub to Great
Solo to Great
Solo Octave to Great

10 Adjustable Combination Pistons

One Tablet to cause the Pedal Stops and Couplers to move so as at all times to furnish a Suitable Bass automatically.

SOLO - Compass 37 Notes (3 Octaves from Tenor C)
8' Tibia Clausa (TC)
8' Trumpet
8' Kinura
8' Orchestral Oboe
8' Oboe Horn
8' Quintadena
Cathedral Chimes
Bells
Xylophone
Glockenspiel

6 Adjustable Combination Pistons

TREMULANTS (3)
Main
Solo
Vox

GENERAL
Two Expression Pedals
One Crescendo Pedal

TOE PISTONS
Siren
Auto Horn
Fire Gong
Steamboat Whistle
Horse Hoofs
Bird

PUSH BUTTON
Door Bell

Return to Home Page

See Also the Opus 99 Specification

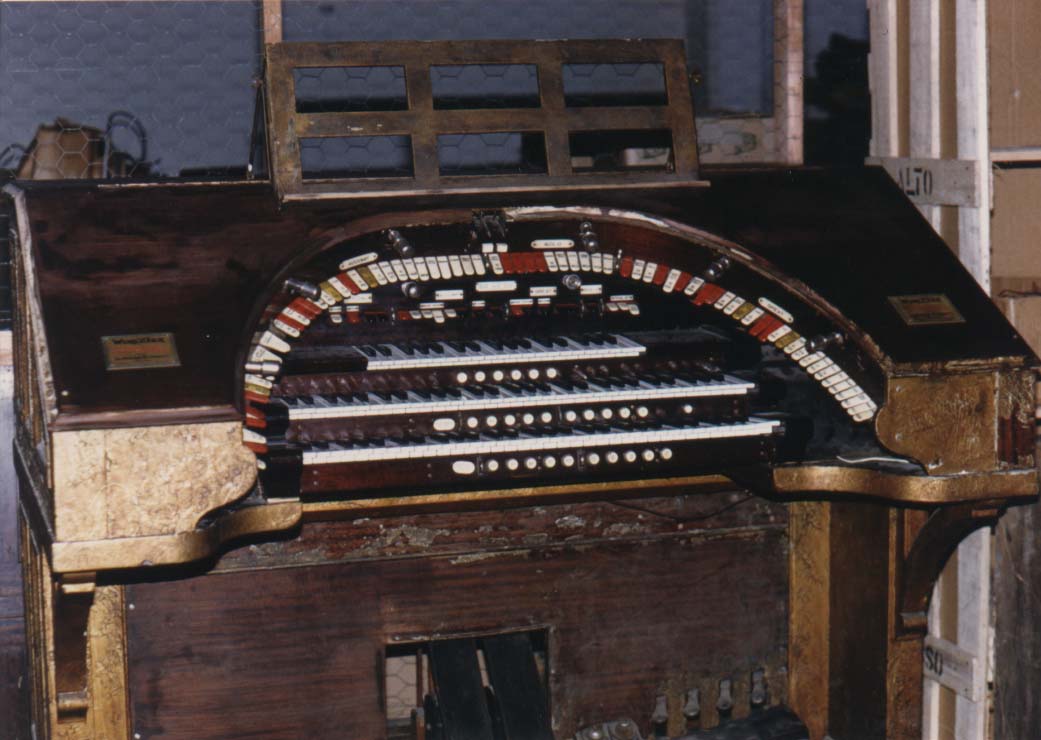

Console from Opus 99
