Hammond Dissection - The A-100

As most Hammond owners know, the Hammond is a complex organ. It is no simple task to fix or modify a Hammond. Seeing all of those wires can be extremely unnerving and formidable. My goal here is to provide a repository for highly detailed photos of the insides of a Hammond. This way, people will know what they're in for when they take the back off and try to fix that broken drawbar, or that stuck vibrato. Reading the procedures in the faq along with looking at these pictures should give a better idea as to what to look for. Over the next couple of weeks, I intend to improve this by adding more pictures and organizing it much better. Thanks for stopping by - please send comments and suggestions, and *especially* suggestions for pictures you would like to see, or you would think others would like to see to me at bdodds@bbnplanet.com..

1 Matching Transformer 2 Matching Transformer 3 Preset Panel 4 Preset Panel with Screw Bag
5 A-100 Power Amp 6 Middle of AO-28 7 Covered lugs on AO-28 8 Covered lugs on AO-28

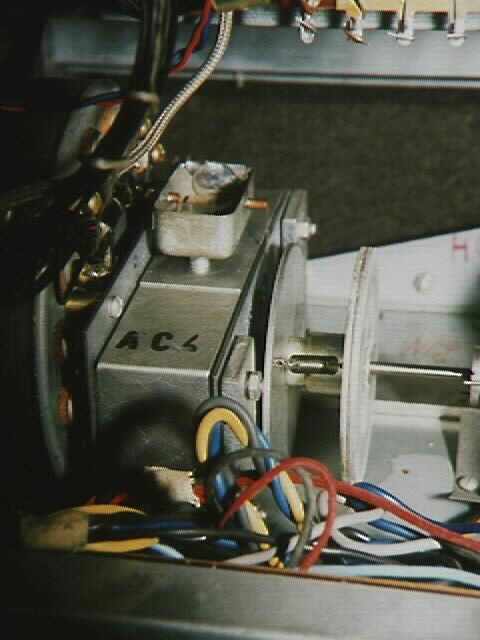

9 Lugs on AO-28 10 Swell Capacitor Box 11 Middle of TG 12 Run Motor and Clutch
13 R-C Network 14 TG Lockdown Bolt 15 TG Lockdown Bolt 16 Front Under of A-100
17 Silver AO-28 Xfrmr 18 Run Motor Clutch 19 Rear of Drawbars 20 Front of A-100
21 CS1x and PC-88mx 22 My Setup 23 Start/Run/Perc Switches 24 Lower Preset Drawbars
25 Upper Preset Drawbars 26 Reverb and Chorus 27 Front of A-100 28 Profile of Keys
29 "New" Half Moon Sw. 30 Hammond Logo 31 Bottom of Pedals 32 Top of Pedals
33 A-100 Bench 34 A-100 Back w/Cover 35 A-100 Back w/o Cover 36 A-100 Reverb Amp
37 Reverb w/Speaker 38 Run Motor w/Scanner 39 Clutch and TG 40 Filter Caps and Drawbars

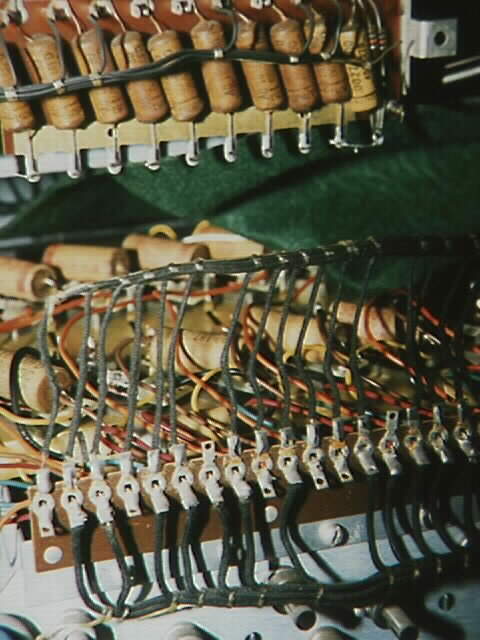

41 Start/Run Switch 42 Resistor Panel 43 TG Connections 44 TG Connections
