I'm not looking forward to starting out all over again. Or, to have to incur the extra cost involved. However, when I sit down to play with only bits and pieces of the 35 rank package spread around a console that is too small for 35 ranks, it really is very frustrating. You only get to live once!

My revamped Rodgers 340 console is excellent for 21/22 ranks, and still very useable for 25, but that is its limit - even with 42 lit pistons acting as stops (so 171 stops including the SAM driven tabs). I must admit that two years ago when the first spec was laid down, I had no idea how to use 22 ranks! In fact 6 years ago even using 10 ranks was a challenge!

The extra musical possibilities of the extra ranks, especially, at the extremes (the gorgeous quieter ranks, and the Tuba Mirabilis at the opposite end) and even in the "middle" (the extra Tibia and extra 2 sets of strings) will make the stress, time, effort and cost worthwhile. In addition, the new double bolster three manual console's specification prepares for a couple of extra ranks beyond 35 ranks. Mainly accompaniment ranks.

Don Clark has already commenced the construction of the new shell, and from Terry Lloyd locally, I have acquired a  2 to 3 manual Wurlitzer Balcolm and Vaughn conversion parts of which are in surprisingly good condition. This is the console from WurliTzer Opus #341 the last installation of which was in the Stren residence in Seattle  http://www.pstos.org/instruments/wa/seattle/stern.htm (my thanks to Frank Vanaman for the investigative forensics).

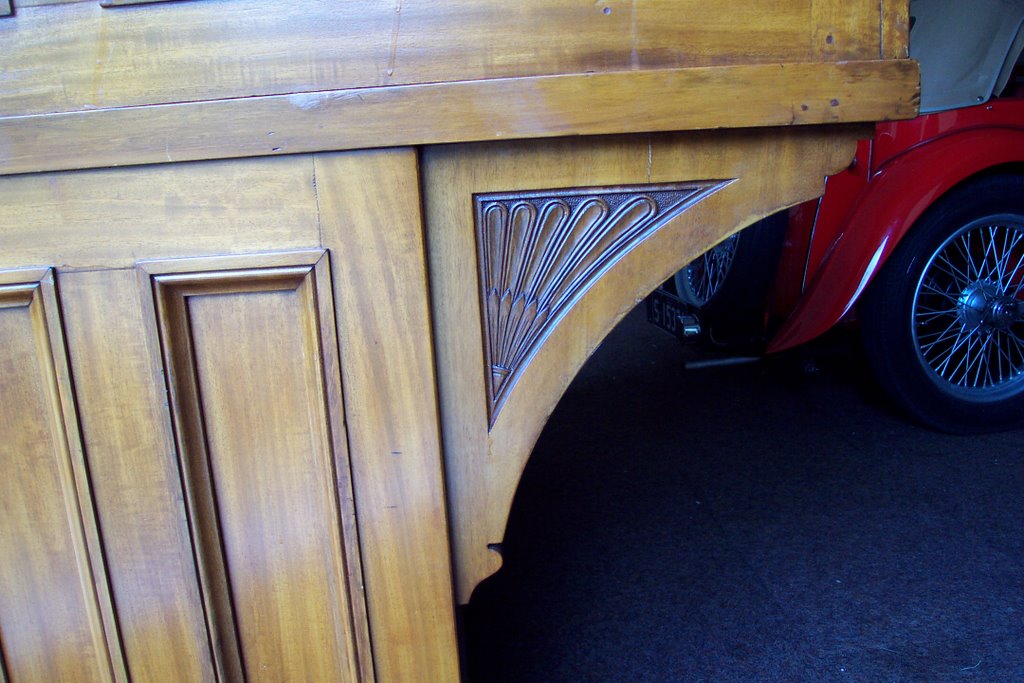

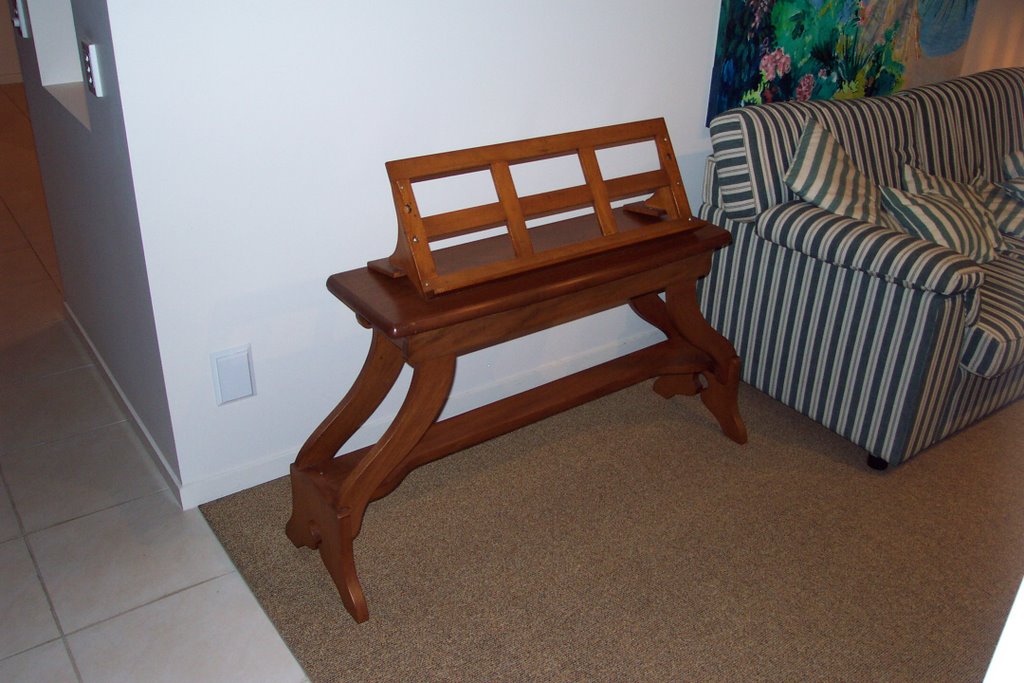

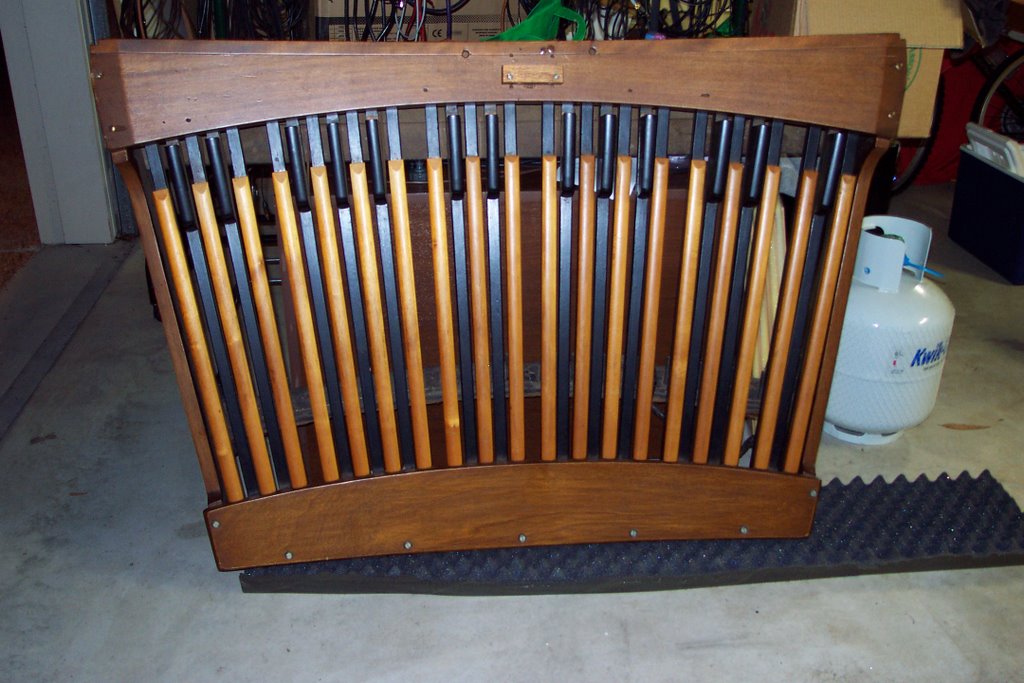

From this console I will be using, refinishing, and refurbishing the pedal board, music rack, bench and gorgeous corbels. New keyboards have been ordered from OSI. The orders are now placed with all suppliers and will arrive over the next few months. Due to unexpectedly lengthy delays in supply, the Rodgers console will now not be sold until the new console is completed.

The new console is to be styled on a paneled 3 manual double bolster WurliTzer console along these lines, but without the incorrect music rack shown here and the console will be finished in satin black.





The music rack will be this style:





















WurliTzer Parts to be Used:







Here is the specification for the new console as designed by Neil Jensen:

  Lower Rail    Top Rail    Lower Back Rail    Top Back Rail
  Pedal     Pedal   Pedal   Accomp
1 32 Diaphone 81 8 English Horn 1 16/8 Piano 1 8 Piano
2 32 Contra Bourdon 82 8 Tuba Horn 2 String Bass 2 Harp Sub
3 16 Double English Horn 83 8 Open Diapason 3 8 Tibia Pizz 3 Harp
4 16 Ophicleide 84 8 Horn Diapason 4 Bass Drum 4 Chrysoglott
5 16 Diaphone (Wood) 85 8 Tibia Clausa  5 Tympani 5 Snare Drum
6 16 Diaphonic Horn 86 8 Tibia Clausa  6 Crash Cymbal 6 Tom Tom
7 16 Tibia Clausa  87 8 Clarinet 7 Cymbal Roll 7 Tambourine
8 16 Violone 88 8 Cello II (4 rks) 8  Brush Cymbal 8 Castanets
9 16 Oboe Horn 89 8 Flute 9  Jazz Cymbal 9 Brush Cymbal
10 16 Bourdon 90 Accomp to Pedal   Acc 2nd Touch  10 Jazz Cymbal
  Accomp 91 Great Octave Pedal 10 8 English Horn 11 Hi Hats
11 8 English Horn 92 Solo to Pedal 11 8 Tuba Mirabilis 12 Wood Block
12 8 Tuba Mirabilis   Accomp 12 8 Brass Trumpet 13 Triangle
13 8 Brass Trumpet  93 8 Vox Humana  13 8 Tuba Horn   Great
14 8 Tuba Horn 94 8 Vox Humana 14 8 Diaphonic Diapason 14 16 Piano
15 8 Diaphonic Diapason  95 4 Octave Horn 15 8 Tibia Clausa (S) 15    8 Piano
16 8 Open Diapason 96 4 Piccolo (M) 16 8 Clarinet 16 Sub Xylophone
17 8 Horn Diapason  97 4 Solo String (2 Rks)  17 8 French Horn 17 Sub Harp
18 8 Tibia Clausa (M) 98 4 Viol (2 Rks) 18 4 Piccolo (2 Rks) 18 Sub Chrysoglott
19 8 Clarinet 99 4 Salicet (2 Rks)  19 Glockenspiel Octave 19 Glockenspiel
20 8 Solo String (2 Rks) 100 4 Lieblich Flute 20 Percussions 2nd Touch 20 Solo on Great Pizzicato
21 8 Viol d' Orchestre (2 Rks) 101 4  Flute  21 Traps 2nd Touch   Solo
22 8 Salicional (2 Rks) 102 4 Dolce (2 Rks) 22 Great Octave Accomp 21 8 Piano
23 8 French Horn 103 4 Vox Humana  23 Solo on Accomp 23 Sub Harp
24 8 Oboe Horn 104 4 Vox Humana    Tremulants  23 Vibraphone
25 8 Quintadena 105 2 2/3 Twelfth  24 Main  24 Chrysoglott
26 8 Lieblich Flute 106 2 Piccolo  25 Solo  25 Orchestral Harp
27 8 Concert Flute 107 Octave  26 Strings  26 Xylophone
28 8 Dolce (2 Rks) 108 Solo on Accomp 27 Clarinet/French Horn  27 Glockenspiel
  Great    Great  28 Tuba Mirabilis  28 Cathedral Chimes
29 16 Double English Horn 109 8 Solo String (2 Rks)  29 Tibias/Sax/Voxes
30 16 Tuba Mirabilis (Ten C) 110 8 Viol d' Orchestre (2 Rks)  30 Brass Trumpet
31 16 Brass Trumpet (Ten C) 111 8 Salicional (2 Rks)  31 Tuba Horn & Trumpet
32 16 Trumpet (Ten C) 112 8 Krumet  32 Vibraphone/ Vibra Harp Trem
