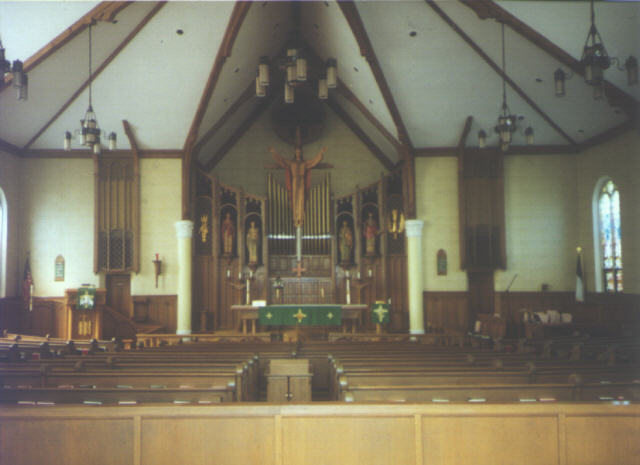

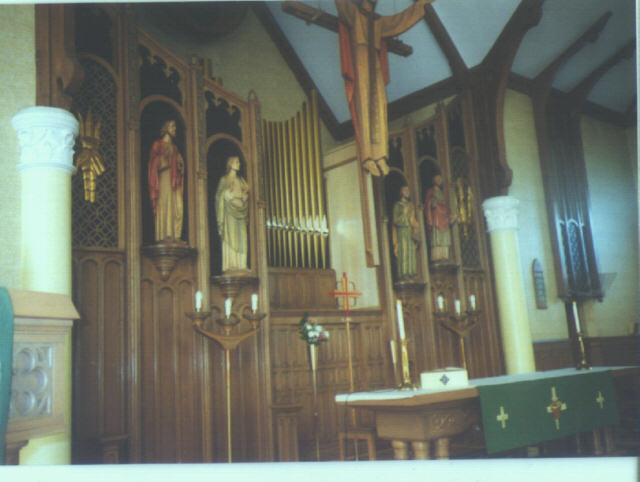

THE BUNN-MINNICK PIPE ORGAN in SAINT JOHN'S LUTHERAN CHURCH - SPRINGFIELD, OHIO

ORGANIST - Robert N. Cowley

*denotes those stops retained from the original Felgemaker pipe organ, circa 1897

GREAT:

	16' Contra Gemshorn
	 8'  Prinzipal
	 8'  Holz Bordun *
	 8'  Gemshorn
	 8'  Unda Maris II *
	 4'  Oktav
 	 4'  Halb Bordun *
       2 2/3'  Quinte
	 2'  Klein Oktav
	III  Mixtur
	 II   Zymbel
	16'  Posaune
	 8'  Tromba
	 4'  Clarion
	      Chimes
	      Great Unison Off
	 4'  Great to Great


PEDAL:
	32'  Grande Harmonics
	32'  Contrabass
	32'  Untersatz
	16'  Wood Diapason
	16'  Subbass
	16'  Contra Gemshorn
	16'  Bourdon Doux
	16'  Contra Dulciana
	 8'   Principal *
	 8'   Gross Flute
	 8'   Gemshorn
	 8'   Bass Flute
	 8'   Bourdon
      5 1/3'   Gross Quinte
	 4'   Choral Bass *
	 4'   Flute
	 2'   Octave *
	IV   Rauschpfeife
	32'  Trombone
	16'  Posaune
	16'  Contre Trompette
	 8'   Tromba
	 8'   Trompette
	 4'   Clarion


CHOIR:
	16'  Contra Dulciana
	 8'   Spitz Prinzipal
	 8'   Hohlflote *
	 8'   Dulciana *
	 8'   Unda Maris *
	 4'   Spitz Oktav
	 4'   Rohrflote *
       2 2/3'   Nasat
	 2'   Zauberflote
       1 3/5'   Terz
       1 1/3'   Quinte
	 1'   Klein Oktav
	 8'   Tromba
	 8'   Clarinet
	       Tremulant
	       Zimbelstern
	       Harp
	16'  Choir to Choir
	       Choir Unison Off
	 4'   Choir to Choir


SWELL:
	16'  Bourdon Doux
	 8'   Montre *
	 8'   Bourdon
	 8'   Viola *
	 8'   Voix Celeste *
	 4'   Prestant *
	 4'   Flute Harmonique *
      2 2/3'   Nazard
	 2'   Doublette *
 	 2'   Flute A'Bec *
      1 3/5'   Tierce
	IV   Plein Jeu
	16'  Contre Trompette
	 8'   Trompette
	 8'   Basson *
	 8'   Vox Humana
	 4'   Clairon
	       Tremulant
	16   Swell to Swell
	       Swell Unison Off
	 4    Swell to Swell

PEDAL COUPLERS:

	8	Great to Pedal
	4	Great to Pedal
	8	Swell to Pedal
	4	Swell to Pedal
	8 	Choir to Pedal
	4	Choir to Pedal
		MIDI to Pedal

CHOIR COUPLERS:

	8	Great to Choir
          16	Swell to Choir
	8	Swell to Choir
	4	Swell to Choir
		MIDI to Choir

GREAT COUPLERS:

	16	Swell to Great
	 8	Swell to Great
	 4	Swell to Great
	16	Choir to Great
	 8	Choir to Great
	 4	Choir to Great
		MIDI to Great


SWELL COUPLERS:

		MIDI to Swell

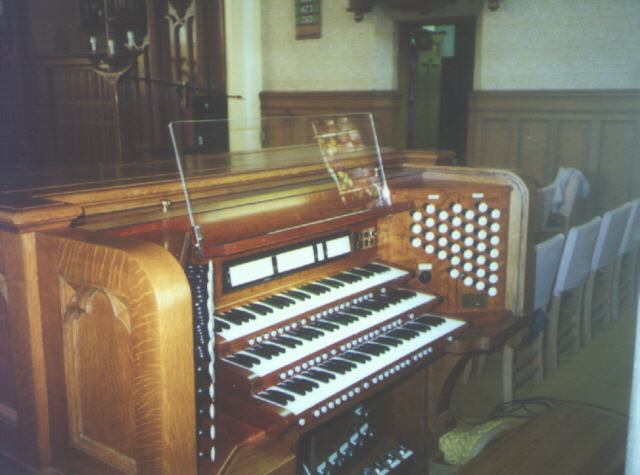

CONSOLE:
Three manual oak console
Manual keyboards of 61 notes
All electric action
Bunn=Minnick Solid-State Coupler Action
Digital Clock
Solid-State Capture Action:  10 Levels of Memory
				  Lock for levels 1-5
18 General Pistons
10 Duplicate General Toe Sutds
General Cancel Piston
Set Piston
6 Great Pistons
Great Cancel Piston
6 Swell Pistons
Swell Cancel Piston
6 Choir Pistons
Choir Cancel Piston
6 Pedal Pistons
6 Duplicate Pedal Toe Studs
Pedal Cancel Piston
4 MIDI Pistons
Sforzando Rev. (Piston & Toe Stud)
Great to Pedal Rev. (Piston & Toe Stud)
Swell to Pedal Rev. (Piston & Toe Stud)
Choir to Pedal Rev. (Piston & Toe Stud)
32' Grande Harmonics Rev. (Piston & Toe Stud)
32' Contrabass Rev. (Piston & Toe Stud)
32' Untersatz Rev. (Piston & Toe Stud)
32' Trombone Rev. (Piston & Toe Stud)
Zimbelstern Rev. (Piston & Toe Stud)
Midi Control panel
Sforzando Indicator Light
Four Crescendo Indicator Lights
Current Indicator Light
Signal Button
Signal Indicator Light
Crescendo Pedal
Swell Expression Pedal
Choir Expression Pedal
Lighted Plexiglas Music rack
Pedal light

The design and handcrafting of this pipe organ was completed by Bunn=Minnick artisans.

The organ chests on which the pipes sit are constructed with electro-pneumatic action controlled by the Bunn-Minnick Solid-State Pipe Organ Relay.

Wind pressures range from 4" to 8".

Tuning is equal temperament.

Twelve ranks of pipes of the original Felgemaker pipe organ, circa 1897, have been meticulously restored for incorporation in this new pipe organ.

MIDI Interface: Allows playing midi instruments (synthesizers) from the pipe organ or the pipe organ to be played from the midi keyboard. Additional the organ is fitted with a "black box" which uses a 3.5" computer disk to capture every nuance of an organist's performance so that the actual performance can be recreated live any time in the future on the pipe organ.
