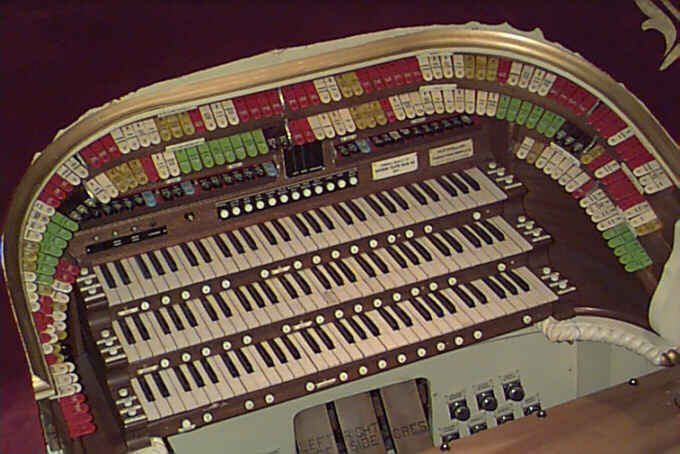

The Moller Theatre Console Specs

These are the current specs for the theatre console. These will be changed slightly, mostly because I don't have 11 16' Ranks.

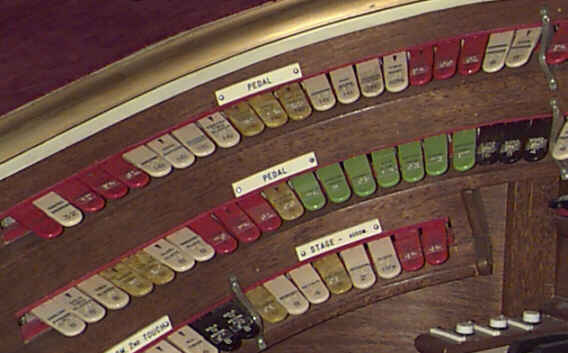

PEDAL
32 Bombarde
32 Contra Bourdon (Resultant)
16 Bombarde
16 Post Horn
16 Tuba
16 Diaphonic Diapason
16 -blank-
16 -blank-
16 Contra Solo Tibia
16 Contra Gamba
16 Bass Viol
16 Contra Viola
16 Bourdon
16 Sub Bass (Stage)
16 Orchestral Oboe
10 2/3 Tibia Quint
8 Post Horn
8 Trumpet
8 Tuba
8 Diaphonic Diapason
8 -blank-
8 English Diapason (Stage)
8 Solo Tibia Clausa
8 Tibia Clausa
8 Gamba
8 Violins
8 Clarabella Flute
8 Concert Flute
8 Clarinet
8 French Horn
4 Tuba Clarion
4 Strings
Chimes
Chinese Gong
Triangle
Bass Drum
Tympani
Cymbal
Persian Cymbal
16 Piano
8 Piano
4 Piano
8 Pedal Super
8 Accom. to Pedal
4 Accom. to Pedal
8 Great to Pedal
4 Great to Pedal
8 Solo to Pedal
4 Solo to Pedal

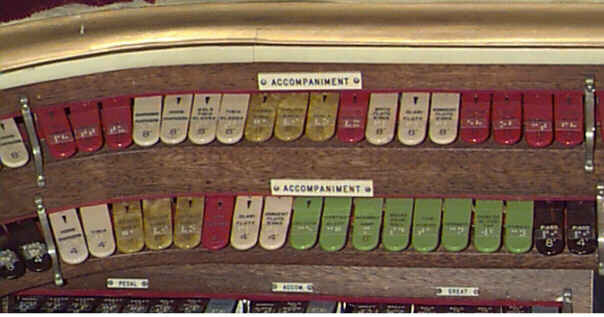

Accompaniment
8 Post Horn
8 Trumpet
8 Tuba
8 Diaphonic Diapason
8 -blank-
8 Solo Tibia Clausa
8 Tibia Clausa
8 Gamba
8 Violins
8 Viola
8 Vox Humana
8 Spitz Flute
8 Clarabella Flute
8 Concert Flute
8 English Horn
8 Echo (Oboe) Horn
8 Clarinet
8 French Horn
4 Diapason
4 Tibia Clausa
4 Gamba
4 Violins
4 Viola
4 Spitz Flute
4 Clarabella Flute
4 Concert Flute
Celesta
Chrysoglott
Marimba
Snare Drum-roll
Tamborine
Castanets
Wood Block
Cymbal
8 Piano
4 Piano
8 Accom. Unison Off (on Key Cheek)
4 Accom. Super
8 Solo to Accom.

Second Touch
8 -blank-
8 Post Horn
8 Trumpet
8 Tuba
8 All Diapasons
8 All Tibias
4 All Tibias
8 Solo to Accom.
8 Solo to Accom. Pizz.

Accompaniment Stage Organ
8 Salicional
8 Gedeckt
4 Octave
4 Salicional
2 Octavin
1 1/3 Flute
8 Wald Horn
4 Wald Horn

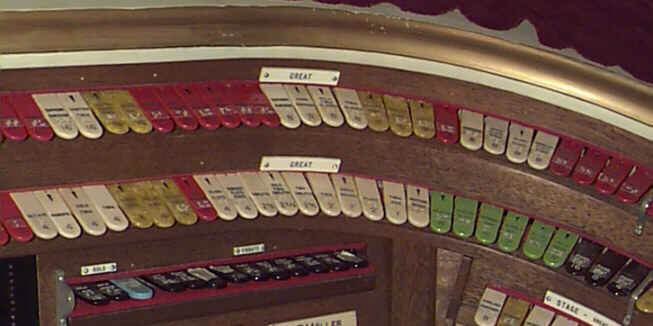

Great
16 Post Horn
16 Trumpet
16 Tuba
16 Diaphonic Diapason
16 Contra Solo Tibia
16 Contra Gamba
16 Bass Violins
16 Orchestral Oboe
16 Clarinet
16 Vox Humana
8 Post Horn
8 Trumpet
8 Tuba
8 Diaphonic Diapason
8 -blank-
8 Solo Tibia Clausa
8 Tibia Clausa
8 Gamba
8 Violins
8 Viola
8 Vox Humana
8 Quintadena
8 Spitz Flute
8 Clarabella Flute
8 Concert Flute
8 Orchestral Oboe
8 English Horn
8 Echo (Oboe) Horn
8 Clarinet
8 French Horn
8 Kinura
5 1/3 Tibia
4 Octave
4 Solo Tibia Clausa
4 Tibia Clausa
4 Gamba
4 Violins
4 Viola
4 Vox Humana
4 Clarabella Flute
4 Concert Flute
2 2/3 Solo Tibia Twelfth
2 2/3 Tibia Twelfth
2 Solo Tibia
2 Flute
1 Fife (Tibia)
Mixture
Octave Celesta
Chrysoglott
Marimba
Glockenspiel
Sleighbells
Xylophone
16 Piano
8 Piano
4 Piano
16 Great Sub
8 Great Unison Off (on Key Cheek)
4 Great Super
16 Solo to Great
8 Solo to Great
4 Solo to Great
8 Solo to Great Pizz.

Great Stage Organ
8 English Diapason
8 Salicional
8 Gedeckt
4 Octave
4 Flute
2 2/3 Nazard
2 Flute
8 Wald Horn

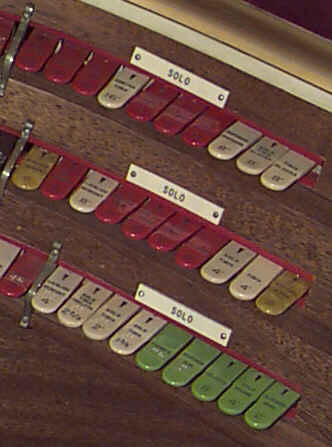

Solo
16 Post Horn
16 Trumpet
16 Tuba
16 Contra Solo Tibia
8 Post Horn
8 Trumpet
8 Tuba
8 Diaphonic Diapason
8 Solo Tibia Clausa
8 Tibia Clausa
8 Strings
8 Vox Humana
8 Clarabella Flute
8 Orchestral Oboe
8 English Horn
8 Echo (Oboe) Horn
8 Clarinet
4 Solo Tibia Clausa
4 Tibia Clausa
4 Strings
4 Clarabella Flute
2 2/3 Solo Tibia Twelfth
2 Solo Tibia Fifteenth
1 3/5 Solo Tibia
Chimes
Sub Marimba
Celesta
Xylophone
Glockenspiel
16 Solo Sub
8 Solo Unison Off (on Key Cheek)
4 Solo Super

SoloKey Cheek Controls include:
Accom. Sost. - On
Great Sost. - On
String Celestes - off
Flute Celestes - off
Vox Humana #1 - on
Vox Humana #
2 - on
Vox Humana #3 - on
Vox Humana #
4 - on
Stage Shades to Right Shoe
Stage Celesta - On
Stage Chimes - On
Stage Traps - On
8 General Pistons + General Cancel
8 Divisional Pistons + Divisional Cancel (each division)
