Anatomy of a WurliTzer Theatre Pipe Organ

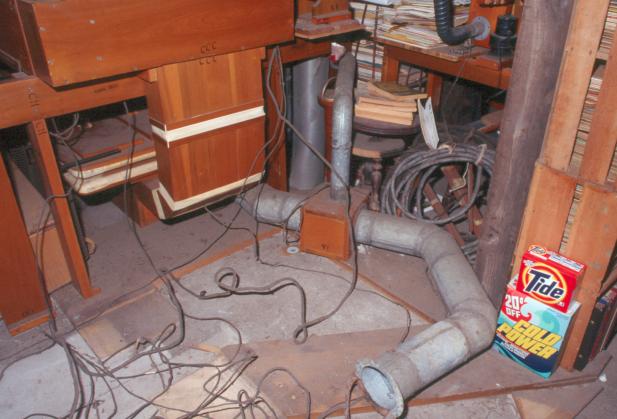

OPUS 2027 during its removal from the basement of the home of Walter Gelinas.

The disconnected air line went to the 8' Flute, Salicional and 16' Bourdon offset chests.

The wooden trunk, just above center, runs from the Main Regulator, under the Manual Chest, up to the Manual Chest manifold for all ranks except the Vox.

At the junction of the wooden trunk and the manifold the letters "CCC" are visible and the letters "CH" are visible on the supports to the left. These markings are guides to how all the parts go together. If all these letters are matched up you should have the instrument together as the factory intended.

Washing detergent is not usually found in pipe organs.
