Anatomy of a WurliTzer Theatre Pipe Organ

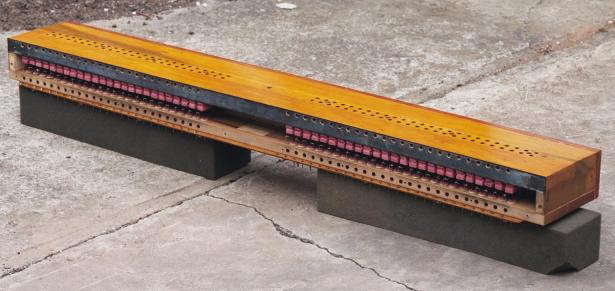

This unit lives across the back of the console. It has the magnets, primary pneumatics and valves for the "on" and "off" actions for the tabs on the horseshoe.

The holes along the edge connect the valve to the exhause holes in the top board via the channels in the front cover board.
