Anatomy of a WurliTzer Theatre Pipe Organ

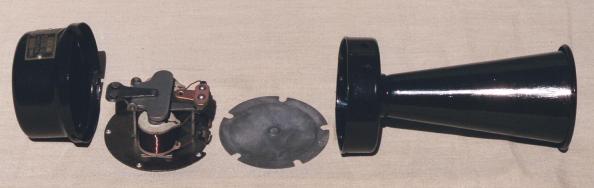

CAR HORN - exploded View

The electromagnets push a rod onto the center of the diaphram generating a pulse air out of the horn.

This is not a true "Klaxon" style which has a rotating movement to stimulate the diaphram.
