Anatomy of a WurliTzer Theatre Pipe Organ

SWITCH STACK Action

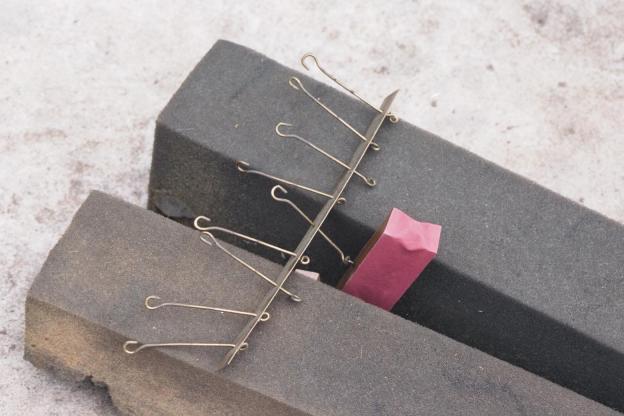

The pneumatics connect to a brass pull wire which then connects to the pull rods that activate the Switches.

The pull wires simply run through holes in a flat brass strip which is clamped to the top of the chest. There is no seals in the assembly.
