Anatomy of a WurliTzer Theatre Pipe Organ

SWITCHSTACK

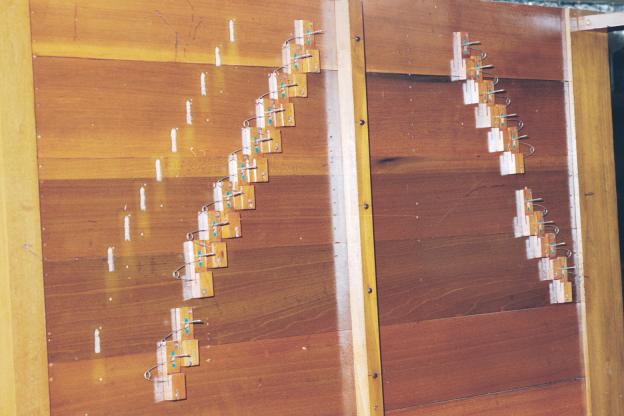

This is the back of the Switchstack panel where the switch arms on the left have all been moved over five positions to accommodate the extra switches that were added below them.

The switch arms protrude through the panel and the spring blocks, which also provide the up and down felt buffer stops. The springs hold the switches on the OFF position.
