Anatomy of a WurliTzer Theatre Pipe Organ

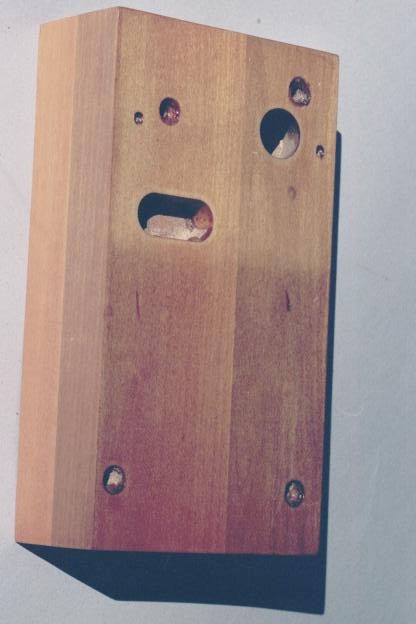

This assembly is part of the control system for a Tremulant.

It mounts on the front of the trem. The Magnet/Valve Box mounts at the top of this assembly and gets its air supply through the round hole at the top/right. The Valve controls the air through the oval hole which connects, via a channel running down the left side, to the Control Pneumatic.
