Anatomy of a WurliTzer Theatre Pipe Organ

RELAY

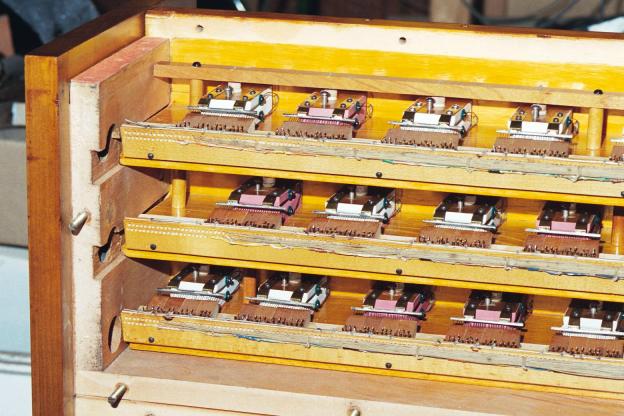

The channels in the end of the chest are only a guide for the relay trays, and only the top two. These do help hold the trays when they are angled out but when they are in place and held by the screws from the back these have no effect. You can see at the end of the centre tray there is a gap between the tray and the end of the chest.
