RELAY

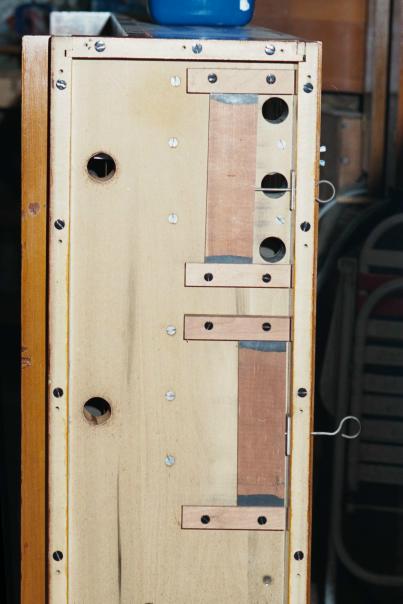

This shows the inlet manifold box, with the ventils in place.
The top ventil is in the normal position allowing air to the Relay
chest.
The lower ventil has been pulled, closing air off from the Accomp
Relay so that chest could be opened for maintenance.
These do not provide a perfect seal but it does reduce the air flow
to a managable level.
